Features
- Dual 15-inch woofers
- Frequency range: 32 Hz–250 Hz (-10 dB)
- 136 dB maximum SPL
- Built-in DSP includes crossover management, EQ, limiting, correction filters, phase-corrected processing and driver-protection circuitry
- Integrated 1,000 watt-per-channel, 6-channel amplifier offers the most channels in its class
- Powers up to four BRX308-LA Line Array Elements
- Input: two balanced XLR-F wired in parallel to XLR-M for THRU outputs
- Output: two 4-pole NL4 connectors for powering up to four tops
- Power input: 20A powerCON/230 VAC only
- Dual inputs with Input Y mode allow a single input for the subwoofer and tops or dedicated inputs for more advanced uses
- Casters provide ease of transport
- Dimensions: 680 x 890 x 693 mm (26.7 x 35 x 27.3 inches) without caster wheels
- Weight: 86 kg (190 pounds)
- Power cable options for China, India and APAC regions

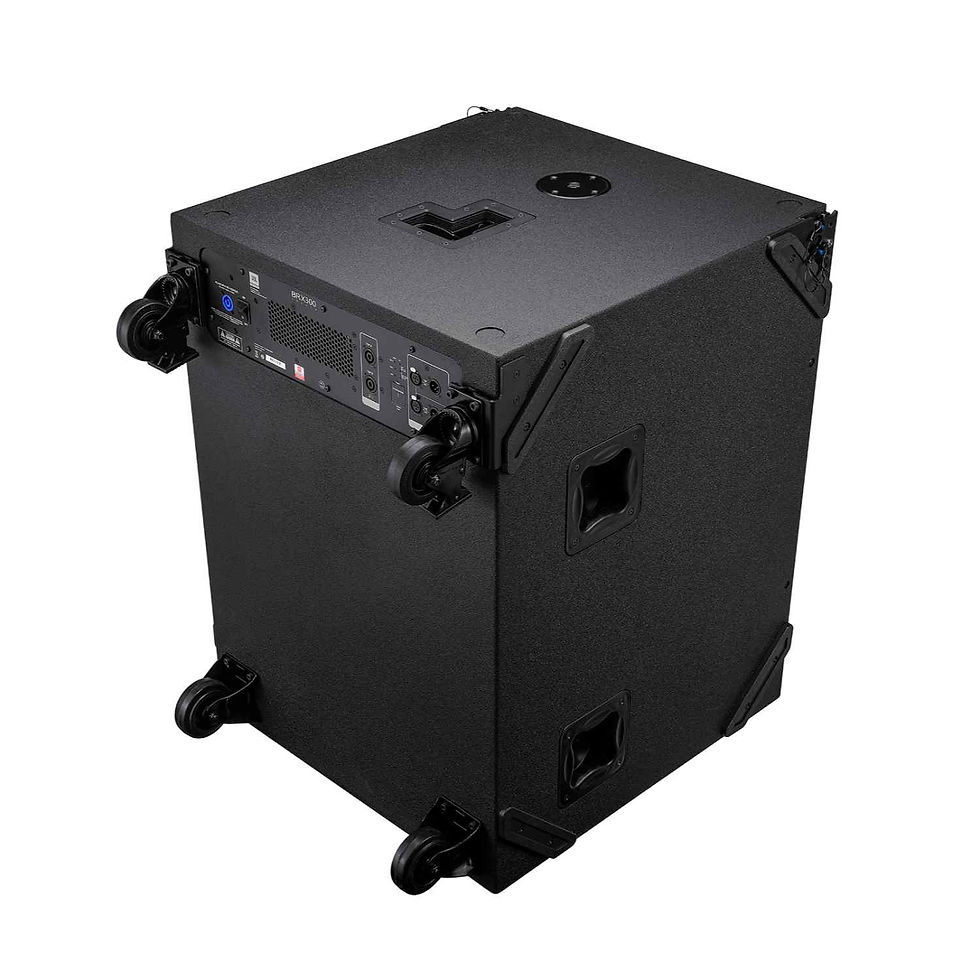

JBL BRX325SP DDEK - Powered Subwoofer
Download Technical Specs Sheet Here
